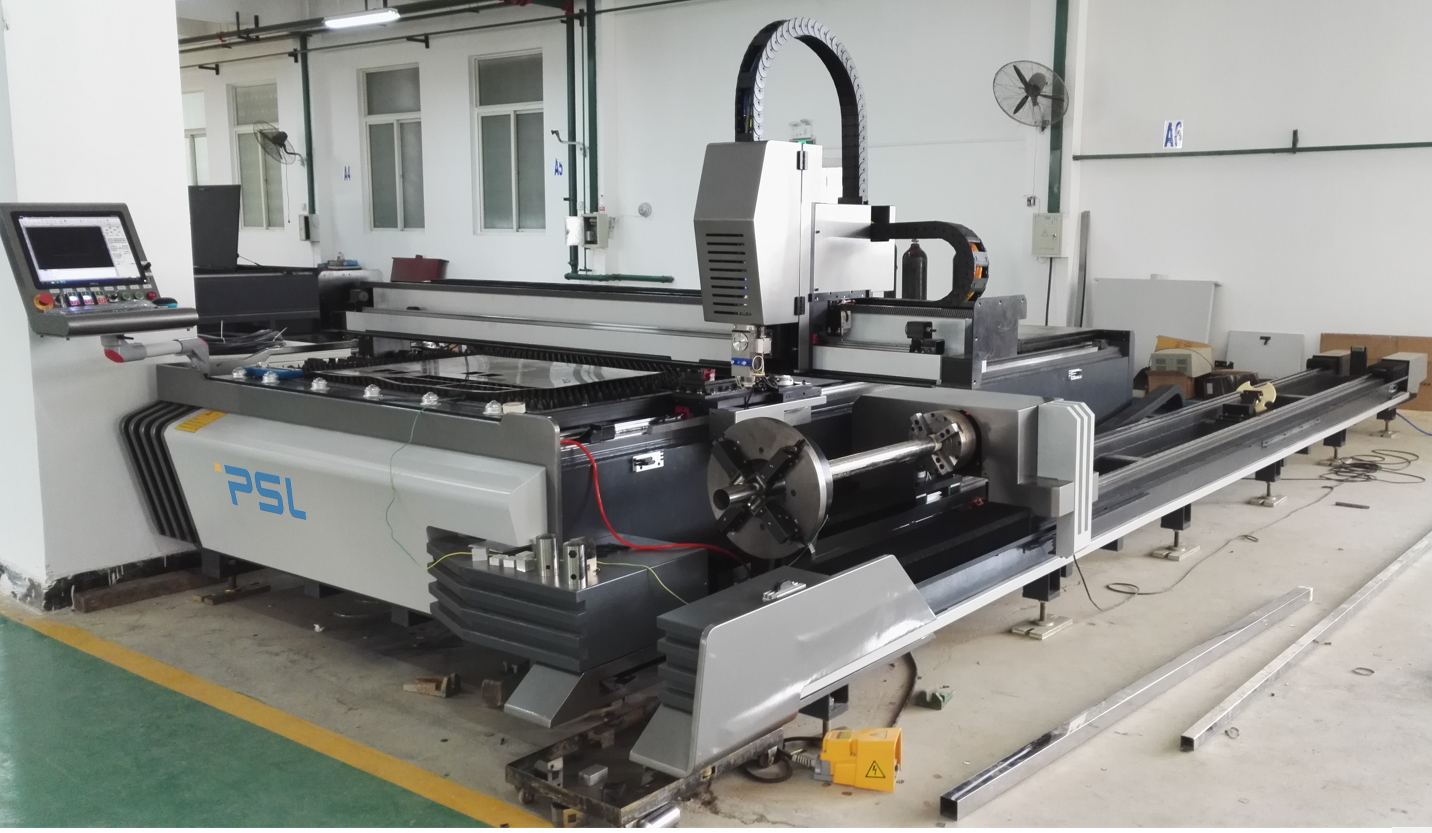

Single Workbench Metal Sheet & Pipe Mixed laser cutting CNC Fiber Laser Cutting machine
Main technical characteristic,
Compared to save money, the machine has two functions, can cut the pipe, also can cut the board
Applicable Industry:
◆ Widely used in cutting stainless steel,carbon steel, manganese steel, spring steel, titanium alloy, galvanized sheet, aluminum plate, brass, copper and other metal material.
◆ Ultra-high type, special metal material cutting.
◆ Used for metal round pipe, square tube, L shaped metal, H Shaped metal, etc
Applicable Materials:
Carbon steel plates : 0-16mm
Carbon steel tube/pipe: 0-12mm
Stainless steel plate : 0-8mm
Stainless steel tube/pipe: 0-6mm.
Aluminum plate & tube/pipe: 0-6mm
Above measured thickness is available high-speed high cutting quality cutting thickness.
Machine structure,
Machine Bed
The machine bed adopts integral welding structure, high temperature back quenching treatment, and then vibration aging treatment. It has good rigidity and high precision, and can be used for a long time without deformation.
Fixed workbench
The machine adopts gantry structure, Taiwan YYC high-precision high-speed rack and pinion (Herion) double-sided drive and linear guide, with stable transmission and high precision.
Fixed worktable main frame: the whole bending process of ultra thick plate is adopted, and then the whole welding is formed, so as to have great bearing capacity.

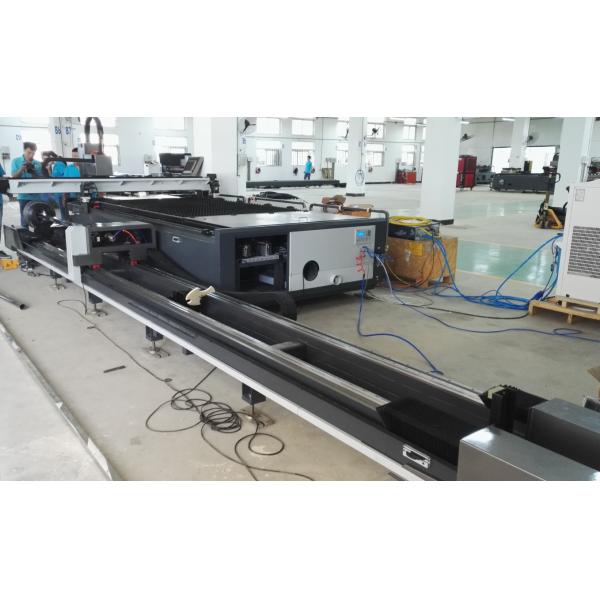

Tube/Pipe cutting Device

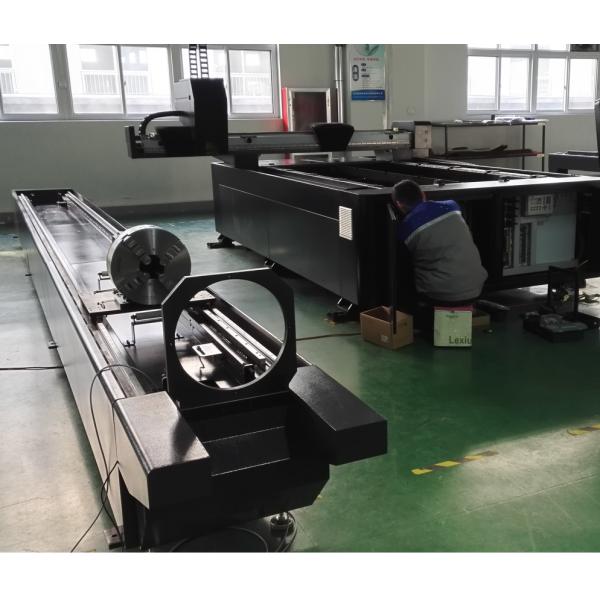

Automatic chuck
The pneumatic automatic chuck is able to clamp the round tube, square tube and oval-shaped tube quickly.
The patented chuck technology has four claws for automatic centering, which can support round tube, square tube and oval-shaped tube.
The circular tube and other materials automatically implement the clamping centering function.
The thin chuck design can easily enter the inside of the fixed chuck to realize the cutting of the tail.
Fixed chuck
The fixed chuck adopts four claws to clamp the pipe, and the claw end is equipped with roller mechanism and can clamp and center quickly.
The chuck has a servo motor drive and movable chuck, they two can whirl at the same time , which can achieve rapid rotation of the pipe cutting without distortion of the pipe.
Cross-Beam
The crossbeam is welded as a whole. After two times of high temperature quenching and vibration aging, the crossbeam is formed by high precision processing.
Lengthened Cross-beam (Y-axis) to process and cut pipes.
X, Y, Z, W axis motion control
X, Y, Z axis and Turning W axis all adopt high torque servo motors, with high precision, high speed, large torque, large inertia, stable and durable performance.
Waste discharge system
The lower part of the bed is equipped with a cart, which can collect the waste in the production process and small parts.
Dust removal system
CNC laser cutting machine workbench has a special partition dust removal system, which is used to remove dust, waste gas and other substances in the production process.
Main technology parameters,
| Name | Metal Sheet & Tube Mixed Fiber laser cutting machine |
| model | FCLT4020-3000W |
| power of laser | 3000w |
| laser source | RAYCUS/IPG |
| BPP,mm*mrad | 1.27 |
| Laser wavelength | 1070nm |
| Maxim Cutting Thickness (Sheet & Tube) | Carbon steel(O2) | 14-16mm |
| Stainless steel(N2) | 6-8mm |
| Aluminum sheet/Tube | 4-6mm |
| Brass Sheet/Tube | 4mm |
| Maxim cutting speed | 60-80m/min(according to materials) |
| Max. acceleration | 1.0G |
| Energy instability | ≤2% |
| supported graphic formats | CAD,CorelDraw software,DXF/DWG/PLT |
| cutting area | 4000×2000 |
| X axis travelling | 4010 |
| Y axis travelling | 2010mm |
| Z axis travelling | 120mm |
| W axis adjustment range | 360degree |
| accuracy of re-position | ±0.03mm/m |
| accuracy of position X/Y axis | ±0.03mm/m |
| Max. loading weight of workbench | 700KG |
| power of the machine | 350V-420V/50Hz |
| Weight of machine | 5500kg |
| Dimensions | meatured according to detailed type |
Main components,

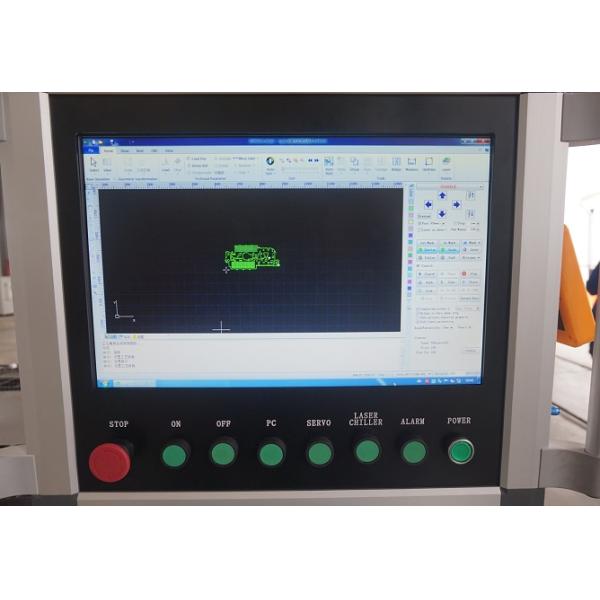

| 1.Controller | Cypcut control system -Which can realize intelligent layout of graphics,automatically choosing and matching cutting paths, save processing time |
| 2.Laser Source | Famous Brand Raycus / Max / IPG -Solid state laser lasts over 50,000hrs; Various power options of 1000w,1500W,2000W,3000W etc |
| 3.Auto focusing | Capacitive Auto-height adjusting Raytools or WSX or PRECITEC Cutting Head -Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal. |
| 4.Servo system | Japan YASKAWA or FUJI or DELTA Servo driver and motor |
| 5.Reducer | Japan Shimpoo / MOTORE Reducer -Used for replace traditional rack and belt,to make machine more powerful and stable |
| 6.High accuracy Gear Rack and Linear guider | Precision transmission Taiwan brand HIWIN, TBI, YCC,HERION -Which can reach ±0.02mm/300mm |
| 7. Cooling Chiller | Hanli / Tongfei Double circulation system, heat exchange titanium tube, over temperature alarm, flow protection, water level protection fiber laser special cooling water tank |
| 8. Voltage Regulator | Optional for some Countries and Areas with unstable voltage |
